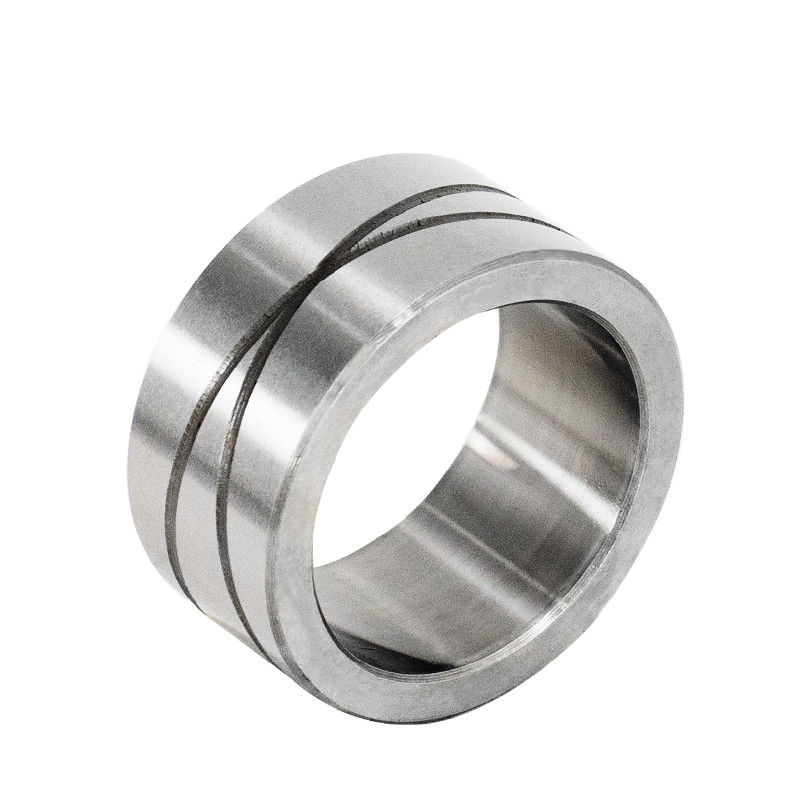

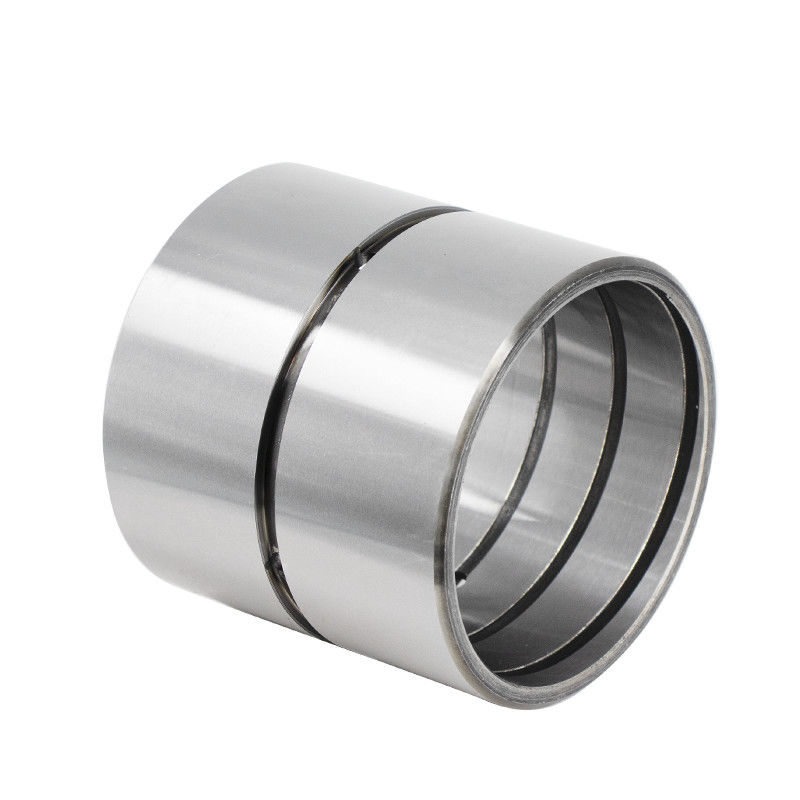

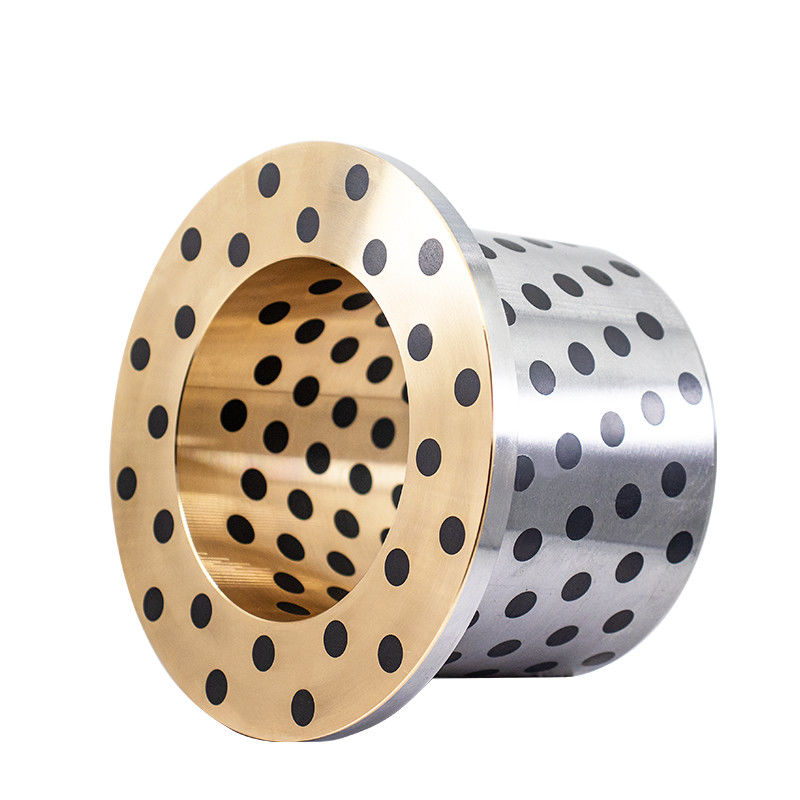

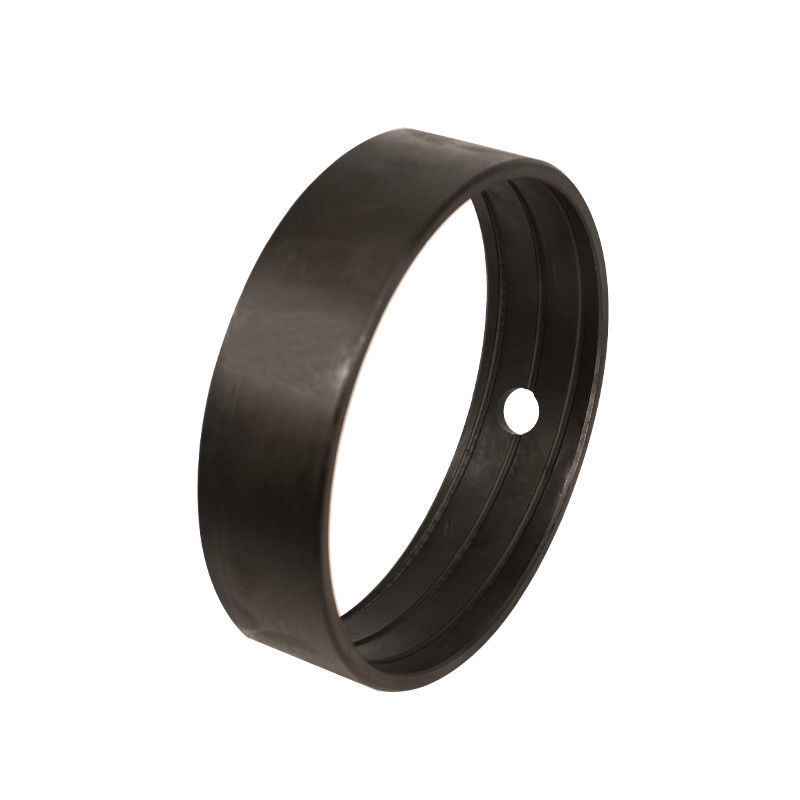

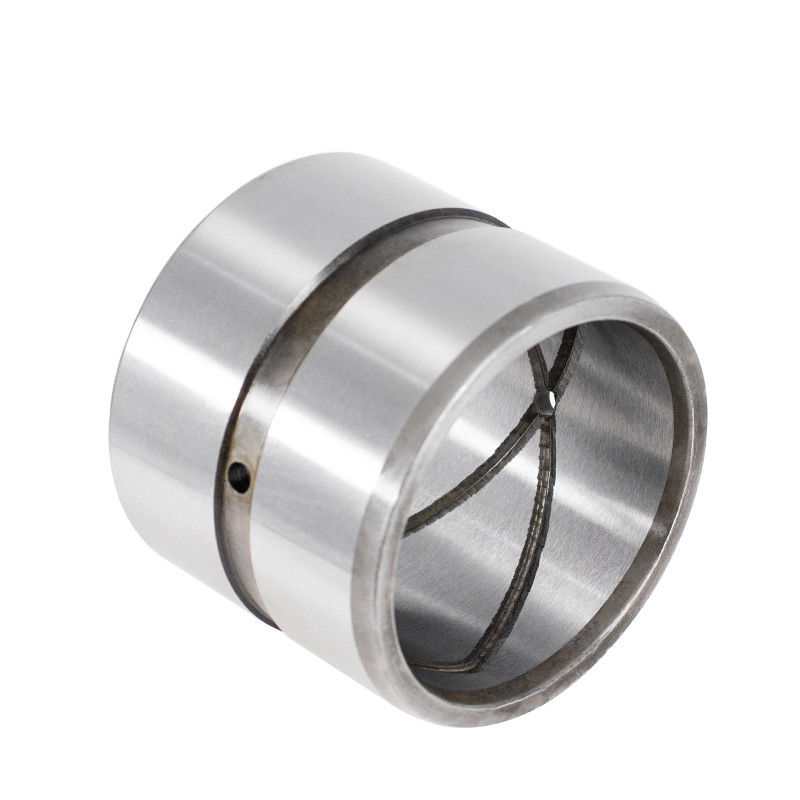

Cnc Machining Lining Hydraulic Cylinder Bushing For Agricultural Machinery

A hydraulic cylinder bushing is a type of bushing used in hydraulic cylinders to provide support and reduce friction between the cylinder's moving parts. Hydraulic cylinders are widely used in various applications, such as construction equipment, industrial machinery, and automotive systems, to convert fluid pressure into linear motion.

Here are some key aspects related to hydraulic cylinder bushings:

Material: Hydraulic cylinder bushings are typically made from materials that offer good wear resistance, high load capacity, and low friction. Common materials used for hydraulic cylinder bushings include bronze, cast iron, or composite materials with self-lubricating properties.

Design considerations: When selecting a hydraulic cylinder bushing, important design factors to consider include the inner diameter (ID), outer diameter (OD), length, tolerances, type of lubrication (self-lubricating or requiring external lubrication), and compatibility with the cylinder's operating conditions.

Load capacity: Hydraulic cylinder bushings are designed to withstand the loads and pressures exerted within the hydraulic cylinder. Proper selection of the bushing material and size is crucial to ensure it can handle the specific load requirements of the cylinder.

Lubrication: Some hydraulic cylinder bushings are self-lubricating, meaning they have embedded lubricants or are made from materials that provide inherent lubrication properties. This reduces the need for additional lubrication and maintenance. However, some bushings may require external lubrication through grease fittings or oil ports.

Installation: Hydraulic cylinder bushings are typically press-fit or installed using other suitable methods into the cylinder's housing or mounting points. The precise fit and alignment of the bushing are crucial to ensure proper functioning and minimize wear.
